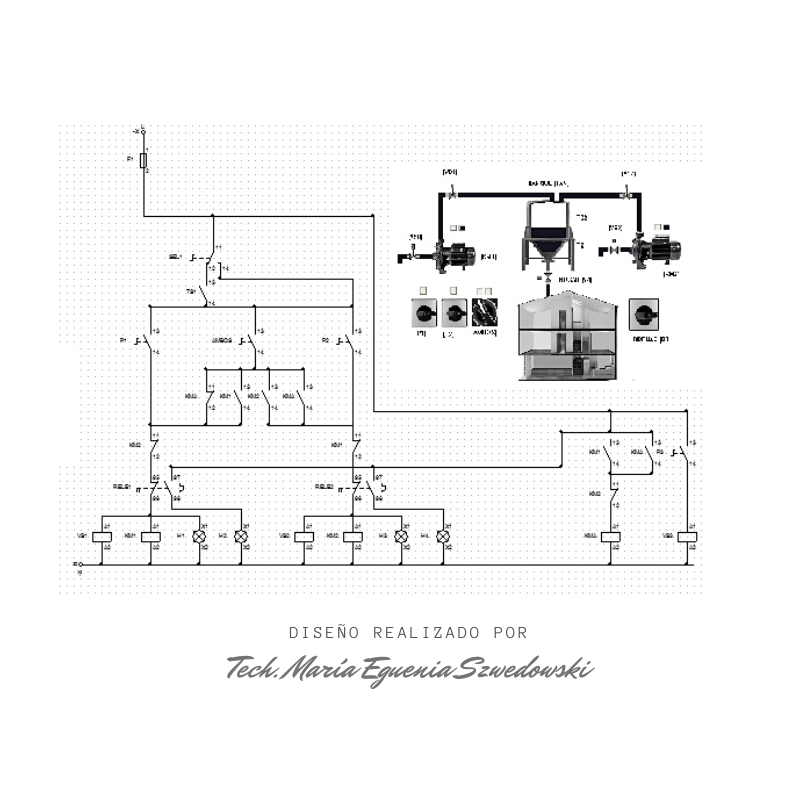

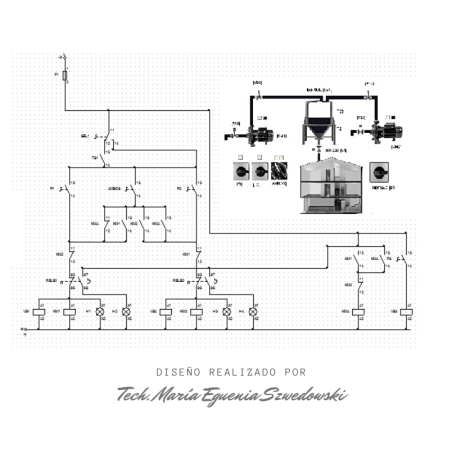

Alternating Pumps x2 - Relay Control CadeSimu (Code: LC004)
$500.00
No tax
Control Type: Contact Diagram
Equipment: Automation system for two alternating water pumps with manual and automatic operation (CadeSimu simulation), including motors, contactors, and control relays
Inputs: Push buttons (NO and NC), selector switch (Manual / Automatic), and control signals for alternation
Logic: Relay-based control allowing manual operation via push buttons and automatic operation with pump alternation, optimizing equipment usage in water supply systems
Actuators: Motor contactors, control relays, and solenoid valves
Signaling: Pilot lights to indicate system status, operation, and alternation
Interconnection: Control wiring through auxiliary contacts and terminal blocks}
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Nota / Disclaimer:
Al tratarse de un desarrollo en CadeSimu, el contenido se ofrece de forma gratuita y no incluye mapas de Karnaugh, desarrollo detallado de la lógica ni planos en formato DWG de AutoCAD.
