Reversing Operation – Relay Control CadeSimu (Code: LC002)
$0.00
No tax

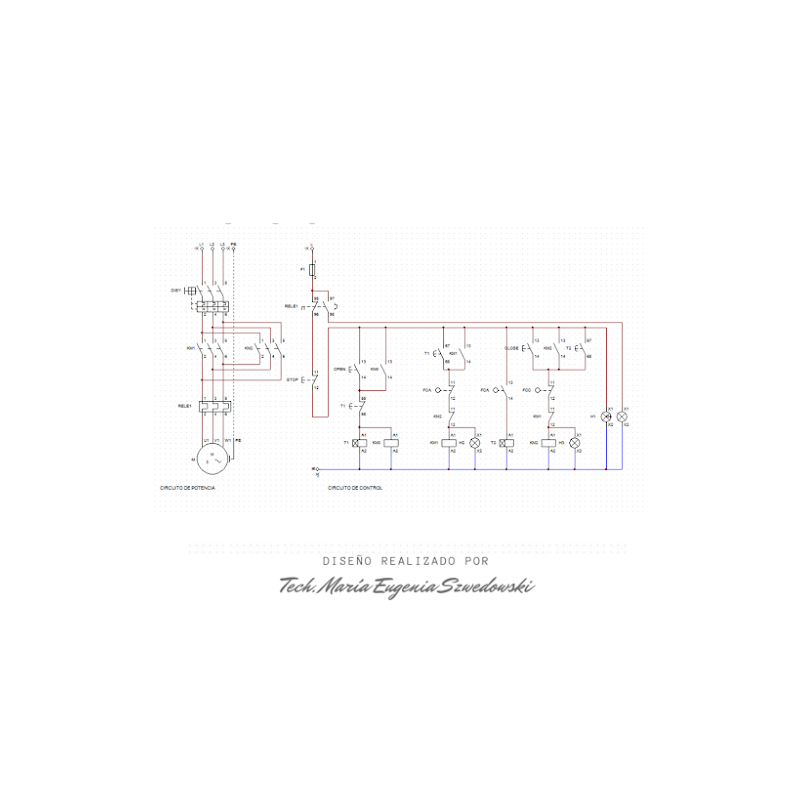

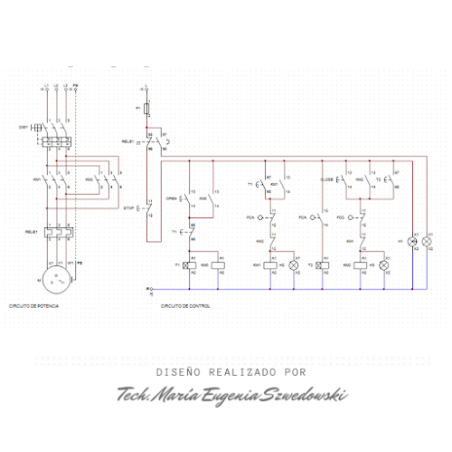

Control Type: Contact diagram (hardwired relay logic)
Equipment: Electric motor with reversing system, two contactors, and one relay
Inputs: Push buttons (NO and NC), limit switches, timers, and control signals
Logic: Control through relays and contactors for motor reversing, including automatic functions such as timed reversal and return operation
Actuators: Power contactors and control relays
Indication: Not specified (pilot lights can be incorporated)
Interconnection: Control wiring through auxiliary contacts and terminal blocks
Safety: Electrical interlocks between contactors to prevent improper simultaneous operations
Note / Disclaimer:
As this is a CadeSimu-based project, the content is provided for free and does not include Karnaugh maps, detailed logic development, or DWG AutoCAD drawings.
