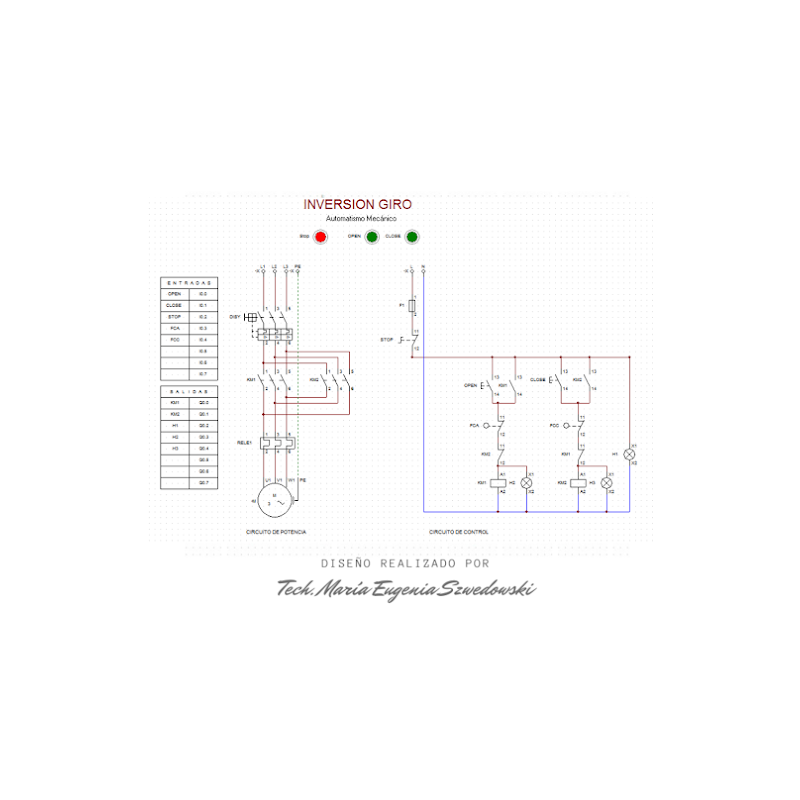

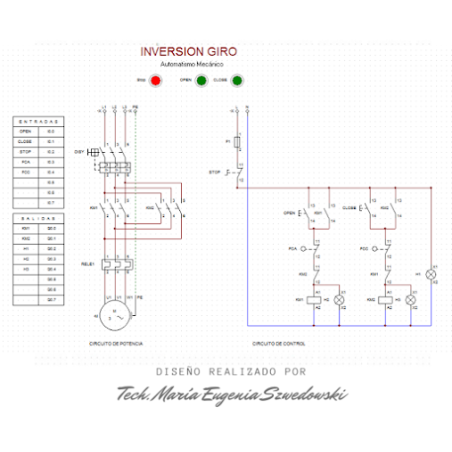

Reversing Operation – Relay Control CadeSimu (Code: LC001)
$0.00
No tax
Control Type: Contact diagram (hardwired relay logic)
Equipment: Electric motor with star-delta starting system and reversing operation
Inputs: Push buttons (NO and NC), limit switches, and control signals
Logic: Control through relays and contactors, motor reversing, and star-delta starting sequence to reduce inrush current
Actuators: Line, star, and delta contactors, control relays
Indication: Not specified (pilot lights can be incorporated)
Interconnection: Control wiring through auxiliary contacts and terminal blocks
Safety: Electrical interlocks between reversing contactors and star-delta transition to prevent improper simultaneous operations
