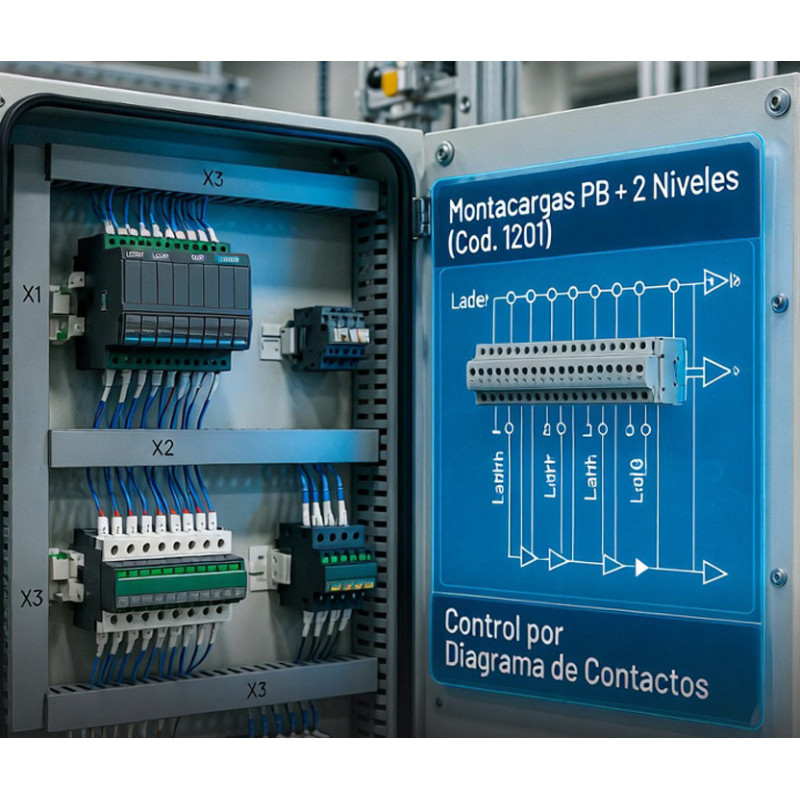

Ground Floor + 2 Levels Freight Elevator (Code 1201)
$1,500.00
No tax
Control Type: Ladder Diagram (Relay Logic)
Levels: Ground Floor + 2 Levels (3 Stops)
Inputs: Push buttons per level (P1, P2, P3) and positioning and safety limit switches (FC1, FC2, FC3)
Logic: Destination selection, interlocking, level memory, up/down control, initial start at Ground Floor
Actuators: Up/Down power contactors and auxiliary enable contactor
Signaling: Status pilot light
Interconnection: Field terminal blocks X1, X2, X3
Safety: NO/NC limit switches, blocking of incompatible maneuvers, and precise level stopping
